Containerized Package MBR Systems: Compact Wastewater Treatment for Modern Needs

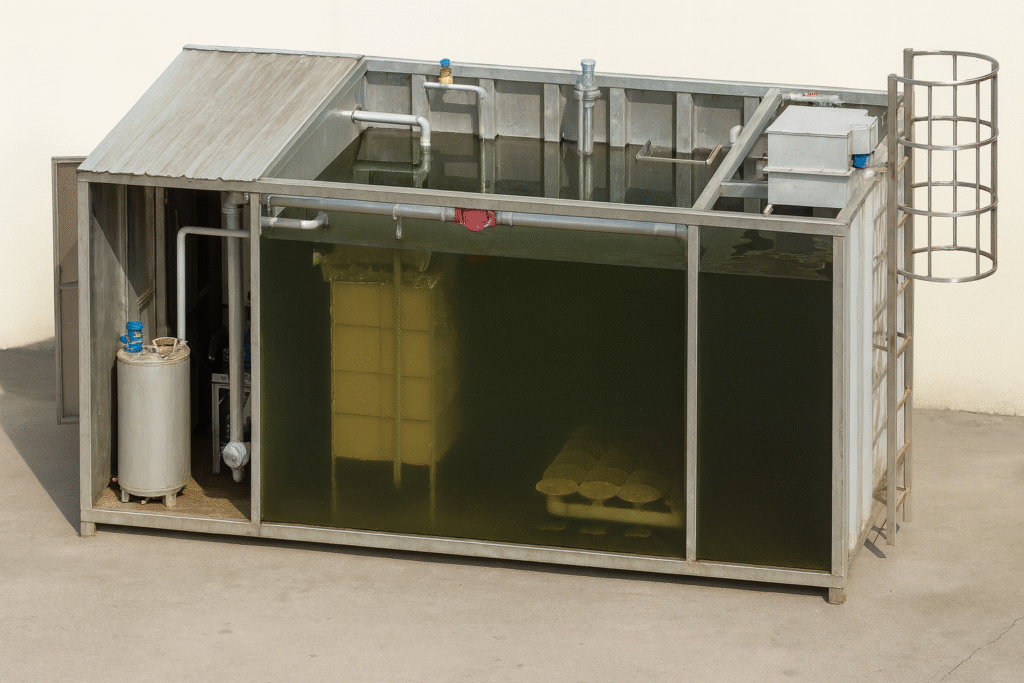

A Package Membrane Bioreactor (MBR) in a container is a pre-engineered, compact wastewater treatment systembuilt inside standard shipping containers (20ft or 40ft). It combines biological treatment and membrane filtrationwithin a modular unit that can be transported, installed, and operated almost anywhere.
These systems are often called plug-and-play wastewater treatment plants because they arrive fully equipped — requiring only water and power connections to start operating.
How It Works
- Influent Screening: Raw sewage or industrial wastewater is screened to remove large debris.
- Bioreactor Tank: Microorganisms degrade organic matter in the wastewater.
- Membrane Filtration: Ultrafiltration or microfiltration membranes separate solids and pathogens, producing crystal-clear effluent.
- Disinfection (Optional): UV or chlorine can be added for extra safety.
- Clean Water Outlet: Treated water can be discharged or reused (irrigation, cooling, washing).
Advantages of Containerized MBR Systems
✅ Fast Deployment – ready to install, no civil works needed.
✅ Compact Design – ideal for sites with limited space.
✅ High Effluent Quality – meets strict discharge and reuse standards.
✅ Scalability – multiple containers can be connected for higher flows.
✅ Mobility – units can be relocated if project needs change.
✅ Reduced Construction Cost – plug-and-play saves time and money.
Typical Applications
- Hotels & Resorts: Treat sewage for reuse in landscaping or flushing.
- Remote Communities: Small towns, refugee camps, mining camps.
- Industrial Sites: Factories, oil & gas facilities, textile plants.
- Emergency Situations: Disaster relief, military bases, humanitarian missions.
- Municipal Extensions: As temporary or supplementary sewage treatment capacity.
Technical Features
- Container size: 20 ft or 40 ft ISO standard.
- Treatment capacity: 50 – 1,000 m³/day (depending on configuration).
- Membrane type: Hollow fiber or flat sheet ultrafiltration membranes.
- Automation: PLC/SCADA-based monitoring and control.
- Energy use: Optimized aeration for fouling control and efficiency.
Why Choose Containerized MBR Over Conventional Plants?
| Feature | Containerized MBR | Conventional Plant |
|---|---|---|
| Construction Time | Weeks | Months to Years |
| Footprint | Very small | Large land required |
| Mobility | Relocatable | Fixed |
| Startup | Plug & Play | Complex |
| Cost | Lower initial cost | Higher civil cost |
Conclusion
A containerized package MBR system is the future of decentralized wastewater treatment. With its mobility, high effluent quality, and ease of installation, it is an ideal solution for industries, hotels, and communities seeking fast and reliable wastewater treatment without the hassle of building a traditional plant.
As water reuse and environmental regulations become stricter, containerized MBRs will continue to grow in demand worldwide.
